Arrays and Images
Provided code is to assist in changing Images.
import javax.imageio.ImageIO;
import java.io.File;
import java.io.IOException;
import java.awt.image.BufferedImage;
public class ImageIOTest {
public static void main( String[] args ){
BufferedImage img = null; // buffer type
try {
// Name of file and directories
String name = "MonaLisa";
String in = "images/";
String out = "images/tmp/";
// Either use URL or File for reading image using ImageIO
File imageFile = new File(in + name + ".png");
img = ImageIO.read(imageFile); // set buffer of image data
// ImageIO Image write to gif in Java
// Documentation https://docs.oracle.com/javase/tutorial/2d/images/index.html
ImageIO.write(img, "gif", new File(out + name + ".gif") ); // write buffer to gif
} catch (IOException e) {
e.printStackTrace();
}
System.out.println("Success");
}
}
ImageIOTest.main(null);
Image Scaling and ASCII Conversion
In this example we print out a row of text for each row in the image. However, it seems as if the image is too tall. To address this problem, try to output a single character per block of pixels. In particular, average the grayscale values in a rectangular block that’s twice as tall as it is wide, and print out a single character for this block.
Hacks
Continue to work with Classes, Arrays, and 2D arrays. FYI, you may need to make a directory /tmp under notebook images.
- Look at comments above and see if there is better conversions for ASCII to reduce elongation and distortion.

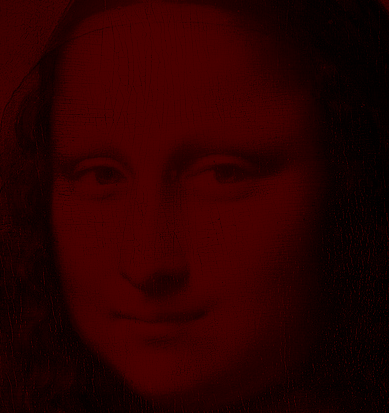

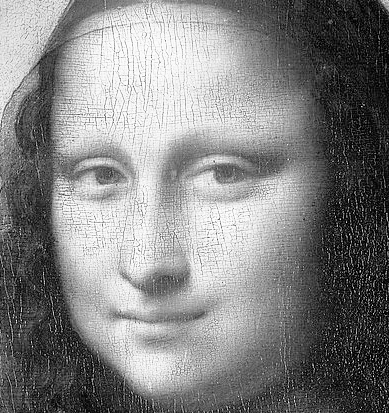

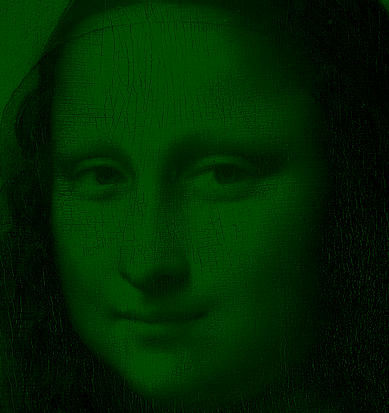

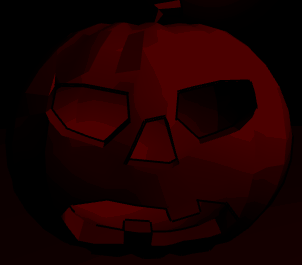

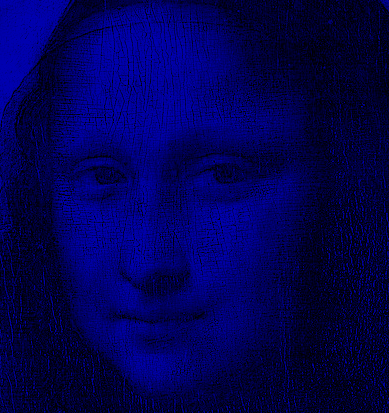

- Try to convert images into Grey Scale, Red Scale, Blue Scale, and Green Scale.
import java.awt.Color;
import java.awt.image.BufferedImage;
import java.awt.Image;
import java.awt.Graphics2D;
import java.io.File;
import java.io.FileWriter;
import java.io.IOException;
import java.io.PrintWriter;
import java.nio.file.Files;
import java.nio.file.Path;
import java.nio.file.Paths;
import javax.imageio.stream.ImageOutputStream;
import javax.imageio.stream.ImageInputStream;
import javax.imageio.metadata.IIOMetadata;
import javax.imageio.IIOImage;
import javax.imageio.ImageIO;
import javax.imageio.ImageWriteParam;
import javax.imageio.ImageWriter;
import javax.imageio.ImageReader;
import javax.imageio.ImageTypeSpecifier;
public class Pics {
private final String inDir = "images/"; // location of images
private final String outDir = "images/tmp/"; // location of created files
private String inFile;
private String resizedFile;
private String asciiFile;
private String ext; // extension of file
private long bytes;
private int width;
private int height;
// Constructor obtains attributes of picture
public Pics(String name, String ext) {
this.ext = ext;
this.inFile = this.inDir + name + "." + ext;
this.resizedFile = this.outDir + name + "." + ext;
this.asciiFile = this.outDir + name + ".txt";
this.setStats();
}
// An image contains metadata, namely size, width, and height
public void setStats() {
BufferedImage img;
try {
Path path = Paths.get(this.inFile);
this.bytes = Files.size(path);
img = ImageIO.read(new File(this.inFile));
this.width = img.getWidth();
this.height = img.getHeight();
} catch (IOException e) {
}
}
// Console print of data
public void printStats(String msg) {
System.out.println(msg + ": " + this.bytes + " " + this.width + "x" + this.height + " " + this.inFile);
}
// Convert scaled image into buffered image
public static BufferedImage convertToBufferedImage(Image img) {
// Create a buffered image with transparency
BufferedImage bi = new BufferedImage(
img.getWidth(null), img.getHeight(null),
BufferedImage.TYPE_INT_ARGB);
// magic?
Graphics2D graphics2D = bi.createGraphics();
graphics2D.drawImage(img, 0, 0, null);
graphics2D.dispose();
return bi;
}
// Scale or reduce to "scale" percentage provided
public void resize(int scale) {
BufferedImage img = null;
Image resizedImg = null;
int width = (int) (this.width * (scale/100.0) + 0.5);
int height = (int) (this.height * (scale/100.0) + 0.5);
try {
// read an image to BufferedImage for processing
img = ImageIO.read(new File(this.inFile)); // set buffer of image data
// create a new BufferedImage for drawing
resizedImg = img.getScaledInstance(width, height, Image.SCALE_SMOOTH);
} catch (IOException e) {
return;
}
try {
ImageIO.write(convertToBufferedImage(resizedImg), this.ext, new File(resizedFile));
} catch (IOException e) {
return;
}
this.inFile = this.resizedFile; // use scaled file vs original file in Class
this.setStats();
}
// convert every pixel to an ascii character (ratio does not seem correct)
public void convertToAscii() {
BufferedImage img = null;
PrintWriter asciiPrt = null;
FileWriter asciiWrt = null;
try {
File file = new File(this.asciiFile);
Files.deleteIfExists(file.toPath());
} catch (IOException e) {
System.out.println("Delete File error: " + e);
}
try {
asciiPrt = new PrintWriter(asciiWrt = new FileWriter(this.asciiFile, true));
} catch (IOException e) {
System.out.println("ASCII out file create error: " + e);
}
try {
img = ImageIO.read(new File(this.inFile));
} catch (IOException e) {
}
//make height twice the width
for (int i = 0; i < (img.getHeight()); i+=2) {
for (int j = 0; j < img.getWidth(); j++) {
Color col = new Color(img.getRGB(j, i));
double pixVal = (((col.getRed() * 0.30) + (col.getBlue() * 0.59) + (col
.getGreen() * 0.11)));
try {
asciiPrt.print(asciiChar(pixVal));
asciiPrt.flush();
asciiWrt.flush();
} catch (Exception ex) {
}
}
try {
asciiPrt.println("");
asciiPrt.flush();
asciiWrt.flush();
} catch (Exception ex) {
}
}
}
// conversion table, there may be better out there ie https://www.billmongan.com/Ursinus-CS173-Fall2020/Labs/ASCIIArt
public String asciiChar(double g) {
String str = " ";
if (g >= 240) {
str = " ";
} else if (g >= 210) {
str = ".";
} else if (g >= 190) {
str = "*";
} else if (g >= 170) {
str = "+";
} else if (g >= 120) {
str = "^";
} else if (g >= 110) {
str = "&";
} else if (g >= 80) {
str = "8";
} else if (g >= 60) {
str = "#";
} else {
str = "@";
}
return str;
}
// tester/driver
public static void main(String[] args) throws IOException {
Pics monaLisa = new Pics("MonaLisa", "png");
monaLisa.printStats("Original");
monaLisa.resize(33);
monaLisa.printStats("Scaled");
monaLisa.convertToAscii();
Pics pumpkin = new Pics("pumpkin", "png");
pumpkin.printStats("Original");
pumpkin.resize(33);
pumpkin.printStats("Scaled");
pumpkin.convertToAscii();
}
}
Pics.main(null);
import java.awt.Color;
import java.awt.image.BufferedImage;
import java.awt.Image;
import java.awt.Graphics2D;
import java.io.File;
import java.io.FileWriter;
import java.io.IOException;
import java.io.PrintWriter;
import java.nio.file.Files;
import java.nio.file.Path;
import java.nio.file.Paths;
import javax.imageio.stream.ImageOutputStream;
import javax.imageio.stream.ImageInputStream;
import javax.imageio.metadata.IIOMetadata;
import javax.imageio.IIOImage;
import javax.imageio.ImageIO;
import javax.imageio.ImageWriteParam;
import javax.imageio.ImageWriter;
import javax.imageio.ImageReader;
import javax.imageio.ImageTypeSpecifier;
public class Pics {
private final String inDir = "images/"; // location of images
private final String outDir = "images/tmp/"; // location of created files
private String inFile;
private String resizedFile;
private String asciiFile;
private String greyFile;
private String ext; // extension of file
private long bytes;
private int width;
private int height;
// Constructor obtains attributes of picture
public Pics(String name, String ext) {
this.ext = ext;
this.inFile = this.inDir + name + "." + ext;
this.resizedFile = this.outDir + name + "." + ext;
this.asciiFile = this.outDir + name + ".txt";
this.greyFile = this.outDir + name + ".png";
this.setStats();
}
// An image contains metadata, namely size, width, and height
public void setStats() {
BufferedImage img;
try {
Path path = Paths.get(this.inFile);
this.bytes = Files.size(path);
img = ImageIO.read(new File(this.inFile));
this.width = img.getWidth();
this.height = img.getHeight();
} catch (IOException e) {
}
}
// Console print of data
public void printStats(String msg) {
System.out.println(msg + ": " + this.bytes + " " + this.width + "x" + this.height + " " + this.inFile);
}
// Convert scaled image into buffered image
public static BufferedImage convertToBufferedImage(Image img) {
// Create a buffered image with transparency
BufferedImage bi = new BufferedImage(
img.getWidth(null), img.getHeight(null),
BufferedImage.TYPE_INT_ARGB);
// magic?
Graphics2D graphics2D = bi.createGraphics();
graphics2D.drawImage(img, 0, 0, null);
graphics2D.dispose();
return bi;
}
// Scale or reduce to "scale" percentage provided
public void resize(int scale) {
BufferedImage img = null;
Image resizedImg = null;
int width = (int) (this.width * (scale/100.0) + 0.5);
int height = (int) (this.height * (scale/100.0) + 0.5);
try {
// read an image to BufferedImage for processing
img = ImageIO.read(new File(this.inFile)); // set buffer of image data
// create a new BufferedImage for drawing
resizedImg = img.getScaledInstance(width, height, Image.SCALE_SMOOTH);
} catch (IOException e) {
return;
}
try {
ImageIO.write(convertToBufferedImage(resizedImg), this.ext, new File(resizedFile));
} catch (IOException e) {
return;
}
this.inFile = this.resizedFile; // use scaled file vs original file in Class
this.setStats();
}
// convert every pixel to an ascii character (ratio does not seem correct)
public void convertToGrey() {
BufferedImage img = null;
PrintWriter asciiPrt = null;
FileWriter asciiWrt = null;
try {
File file = new File(this.asciiFile);
Files.deleteIfExists(file.toPath());
} catch (IOException e) {
System.out.println("Delete File error: " + e);
}
//read image
// File f = null;
// File g = null;
// try{
// f = new File(this.);
// img = ImageIO.read(f);
// }catch(IOException e){
// System.out.println(e);
// }
// try{
// g = new File("images/tmp/pumpkin.png");
// img = ImageIO.read(g);
// }catch(IOException e){
// System.out.println(e);
// }
try {
asciiPrt = new PrintWriter(asciiWrt = new FileWriter(this.asciiFile, true));
} catch (IOException e) {
System.out.println("ASCII out file create error: " + e);
}
try {
img = ImageIO.read(new File(this.inFile));
} catch (IOException e) {
}
for (int i = 0; i < img.getHeight(); i++) {
for (int j = 0; j < img.getWidth(); j++) {
Color col = new Color(img.getRGB(j, i));
// double pixVal = (((col.getRed() * 0.30) + (col.getBlue() * 0.59) + (col
// .getGreen() * 0.11)));
int r = (int) (col.getRed() * 0.299);
int g = (int) (col.getGreen() * 0.587);
int b = (int) (col.getBlue() * 0.114);
Color greyScale = new Color(
r + g + b,
r + g + b,
r + g + b);
img.setRGB(j, i, greyScale.getRGB());
// try {
// asciiPrt.print(asciiChar(greyScale));
// asciiPrt.flush();
// asciiWrt.flush();
// } catch (Exception ex) {
// }
}
try {
asciiPrt.println("");
asciiPrt.flush();
asciiWrt.flush();
} catch (Exception ex) {
}
}
//write image
try{
File file = new File(this.greyFile);
ImageIO.write(img, "png", file);
}catch(IOException e){
System.out.println(e);
}
}
// conversion table, there may be better out there ie https://www.billmongan.com/Ursinus-CS173-Fall2020/Labs/ASCIIArt
public String asciiChar(double g) {
String str = " ";
if (g >= 240) {
str = " ";
} else if (g >= 210) {
str = ".";
} else if (g >= 190) {
str = "*";
} else if (g >= 170) {
str = "+";
} else if (g >= 120) {
str = "^";
} else if (g >= 110) {
str = "&";
} else if (g >= 80) {
str = "8";
} else if (g >= 60) {
str = "#";
} else {
str = "@";
}
return str;
}
// tester/driver
public static void main(String[] args) throws IOException {
Pics monaLisa = new Pics("MonaLisa", "png");
// monaLisa.printStats("Original");
// monaLisa.resize(33);
// monaLisa.printStats("Scaled");
monaLisa.convertToGrey();
Pics pumpkin = new Pics("pumpkin", "png");
// pumpkin.printStats("Original");
// pumpkin.resize(33);
// pumpkin.printStats("Scaled");
pumpkin.convertToGrey();
}
}
Pics.main(null);
import java.awt.Color;
import java.awt.image.BufferedImage;
import java.awt.Image;
import java.awt.Graphics2D;
import java.io.File;
import java.io.FileWriter;
import java.io.IOException;
import java.io.PrintWriter;
import java.nio.file.Files;
import java.nio.file.Path;
import java.nio.file.Paths;
import javax.imageio.stream.ImageOutputStream;
import javax.imageio.stream.ImageInputStream;
import javax.imageio.metadata.IIOMetadata;
import javax.imageio.IIOImage;
import javax.imageio.ImageIO;
import javax.imageio.ImageWriteParam;
import javax.imageio.ImageWriter;
import javax.imageio.ImageReader;
import javax.imageio.ImageTypeSpecifier;
public class Pics {
private final String inDir = "images/"; // location of images
private final String outDir = "images/tmp/"; // location of created files
private String inFile;
private String resizedFile;
private String asciiFile;
private String redFile;
private String ext; // extension of file
private long bytes;
private int width;
private int height;
// Constructor obtains attributes of picture
public Pics(String name, String ext) {
this.ext = ext;
this.inFile = this.inDir + name + "." + ext;
this.resizedFile = this.outDir + name + "." + ext;
this.asciiFile = this.outDir + name + ".txt";
this.redFile = this.outDir + name + ".png";
this.setStats();
}
// An image contains metadata, namely size, width, and height
public void setStats() {
BufferedImage img;
try {
Path path = Paths.get(this.inFile);
this.bytes = Files.size(path);
img = ImageIO.read(new File(this.inFile));
this.width = img.getWidth();
this.height = img.getHeight();
} catch (IOException e) {
}
}
// Console print of data
public void printStats(String msg) {
System.out.println(msg + ": " + this.bytes + " " + this.width + "x" + this.height + " " + this.inFile);
}
// Convert scaled image into buffered image
public static BufferedImage convertToBufferedImage(Image img) {
// Create a buffered image with transparency
BufferedImage bi = new BufferedImage(
img.getWidth(null), img.getHeight(null),
BufferedImage.TYPE_INT_ARGB);
// magic?
Graphics2D graphics2D = bi.createGraphics();
graphics2D.drawImage(img, 0, 0, null);
graphics2D.dispose();
return bi;
}
// Scale or reduce to "scale" percentage provided
public void resize(int scale) {
BufferedImage img = null;
Image resizedImg = null;
int width = (int) (this.width * (scale/100.0) + 0.5);
int height = (int) (this.height * (scale/100.0) + 0.5);
try {
// read an image to BufferedImage for processing
img = ImageIO.read(new File(this.inFile)); // set buffer of image data
// create a new BufferedImage for drawing
resizedImg = img.getScaledInstance(width, height, Image.SCALE_SMOOTH);
} catch (IOException e) {
return;
}
try {
ImageIO.write(convertToBufferedImage(resizedImg), this.ext, new File(resizedFile));
} catch (IOException e) {
return;
}
this.inFile = this.resizedFile; // use scaled file vs original file in Class
this.setStats();
}
// convert every pixel to an ascii character (ratio does not seem correct)
public void convertToRed() {
BufferedImage img = null;
PrintWriter asciiPrt = null;
FileWriter asciiWrt = null;
try {
File file = new File(this.redFile);
Files.deleteIfExists(file.toPath());
} catch (IOException e) {
System.out.println("Delete File error: " + e);
}
//read image
// File f = null;
// File g = null;
// try{
// f = new File(this.);
// img = ImageIO.read(f);
// }catch(IOException e){
// System.out.println(e);
// }
// try{
// g = new File("images/tmp/pumpkin.png");
// img = ImageIO.read(g);
// }catch(IOException e){
// System.out.println(e);
// }
try {
asciiPrt = new PrintWriter(asciiWrt = new FileWriter(this.asciiFile, true));
} catch (IOException e) {
System.out.println("ASCII out file create error: " + e);
}
try {
img = ImageIO.read(new File(this.inFile));
} catch (IOException e) {
}
for (int i = 0; i < img.getHeight(); i++) {
for (int j = 0; j < img.getWidth(); j++) {
Color col = new Color(img.getRGB(j, i));
// double pixVal = (((col.getRed() * 0.30) + (col.getBlue() * 0.59) + (col
// .getGreen() * 0.11)));
int r = (int) (col.getRed() * 0.3);
// int g = (int) (col.getGreen() * 0.25);
// int b = (int) (col.getBlue() * 0.25);
Color redScale = new Color(
r,
0,
0);
img.setRGB(j, i, redScale.getRGB());
// try {
// asciiPrt.print(asciiChar(greyScale));
// asciiPrt.flush();
// asciiWrt.flush();
// } catch (Exception ex) {
// }
}
try {
asciiPrt.println("");
asciiPrt.flush();
asciiWrt.flush();
} catch (Exception ex) {
}
}
//write image
try{
File file = new File(this.redFile);
ImageIO.write(img, "png", file);
}catch(IOException e){
System.out.println(e);
}
}
// conversion table, there may be better out there ie https://www.billmongan.com/Ursinus-CS173-Fall2020/Labs/ASCIIArt
public String asciiChar(double g) {
String str = " ";
if (g >= 240) {
str = " ";
} else if (g >= 210) {
str = ".";
} else if (g >= 190) {
str = "*";
} else if (g >= 170) {
str = "+";
} else if (g >= 120) {
str = "^";
} else if (g >= 110) {
str = "&";
} else if (g >= 80) {
str = "8";
} else if (g >= 60) {
str = "#";
} else {
str = "@";
}
return str;
}
// tester/driver
public static void main(String[] args) throws IOException {
Pics monaLisa = new Pics("MonaLisa", "png");
// monaLisa.printStats("Original");
// monaLisa.resize(33);
// monaLisa.printStats("Scaled");
monaLisa.convertToRed();
Pics pumpkin = new Pics("pumpkin", "png");
// pumpkin.printStats("Original");
// pumpkin.resize(33);
// pumpkin.printStats("Scaled");
pumpkin.convertToRed();
}
}
Pics.main(null);
import java.awt.Color;
import java.awt.image.BufferedImage;
import java.awt.Image;
import java.awt.Graphics2D;
import java.io.File;
import java.io.FileWriter;
import java.io.IOException;
import java.io.PrintWriter;
import java.nio.file.Files;
import java.nio.file.Path;
import java.nio.file.Paths;
import javax.imageio.stream.ImageOutputStream;
import javax.imageio.stream.ImageInputStream;
import javax.imageio.metadata.IIOMetadata;
import javax.imageio.IIOImage;
import javax.imageio.ImageIO;
import javax.imageio.ImageWriteParam;
import javax.imageio.ImageWriter;
import javax.imageio.ImageReader;
import javax.imageio.ImageTypeSpecifier;
public class Pics {
private final String inDir = "images/"; // location of images
private final String outDir = "images/tmp/"; // location of created files
private String inFile;
private String resizedFile;
private String asciiFile;
private String redFile;
private String blueFile;
private String greenFile;
private String ext; // extension of file
private long bytes;
private int width;
private int height;
// Constructor obtains attributes of picture
public Pics(String name, String ext) {
this.ext = ext;
this.inFile = this.inDir + name + "." + ext;
this.resizedFile = this.outDir + name + "." + ext;
this.asciiFile = this.outDir + name + ".txt";
this.redFile = this.outDir + name + ".png";
this.blueFile = this.outDir + name + ".png";
this.greenFile = this.outDir + name + ".png";
this.setStats();
}
// An image contains metadata, namely size, width, and height
public void setStats() {
BufferedImage img;
try {
Path path = Paths.get(this.inFile);
this.bytes = Files.size(path);
img = ImageIO.read(new File(this.inFile));
this.width = img.getWidth();
this.height = img.getHeight();
} catch (IOException e) {
}
}
// Console print of data
public void printStats(String msg) {
System.out.println(msg + ": " + this.bytes + " " + this.width + "x" + this.height + " " + this.inFile);
}
// Convert scaled image into buffered image
public static BufferedImage convertToBufferedImage(Image img) {
// Create a buffered image with transparency
BufferedImage bi = new BufferedImage(
img.getWidth(null), img.getHeight(null),
BufferedImage.TYPE_INT_ARGB);
// magic?
Graphics2D graphics2D = bi.createGraphics();
graphics2D.drawImage(img, 0, 0, null);
graphics2D.dispose();
return bi;
}
// Scale or reduce to "scale" percentage provided
public void resize(int scale) {
BufferedImage img = null;
Image resizedImg = null;
int width = (int) (this.width * (scale/100.0) + 0.5);
int height = (int) (this.height * (scale/100.0) + 0.5);
try {
// read an image to BufferedImage for processing
img = ImageIO.read(new File(this.inFile)); // set buffer of image data
// create a new BufferedImage for drawing
resizedImg = img.getScaledInstance(width, height, Image.SCALE_SMOOTH);
} catch (IOException e) {
return;
}
try {
ImageIO.write(convertToBufferedImage(resizedImg), this.ext, new File(resizedFile));
} catch (IOException e) {
return;
}
this.inFile = this.resizedFile; // use scaled file vs original file in Class
this.setStats();
}
// convert every pixel to an ascii character (ratio does not seem correct)
public void convertToBlue() {
BufferedImage img = null;
PrintWriter asciiPrt = null;
FileWriter asciiWrt = null;
try {
File file = new File(this.blueFile);
Files.deleteIfExists(file.toPath());
} catch (IOException e) {
System.out.println("Delete File error: " + e);
}
//read image
// File f = null;
// File g = null;
// try{
// f = new File(this.);
// img = ImageIO.read(f);
// }catch(IOException e){
// System.out.println(e);
// }
// try{
// g = new File("images/tmp/pumpkin.png");
// img = ImageIO.read(g);
// }catch(IOException e){
// System.out.println(e);
// }
try {
asciiPrt = new PrintWriter(asciiWrt = new FileWriter(this.asciiFile, true));
} catch (IOException e) {
System.out.println("ASCII out file create error: " + e);
}
try {
img = ImageIO.read(new File(this.inFile));
} catch (IOException e) {
}
for (int i = 0; i < img.getHeight(); i++) {
for (int j = 0; j < img.getWidth(); j++) {
Color col = new Color(img.getRGB(j, i));
// double pixVal = (((col.getRed() * 0.30) + (col.getBlue() * 0.59) + (col
// .getGreen() * 0.11)));
//int r = (int) (col.getRed() * 0.3);
//int g = (int) (col.getGreen() * 0.25);
int b = (int) (col.getBlue() * 0.7);
Color blueScale = new Color(
0,
0,
b);
img.setRGB(j, i, blueScale.getRGB());
// try {
// asciiPrt.print(asciiChar(greyScale));
// asciiPrt.flush();
// asciiWrt.flush();
// } catch (Exception ex) {
// }
}
try {
asciiPrt.println("");
asciiPrt.flush();
asciiWrt.flush();
} catch (Exception ex) {
}
}
//write image
try{
File file = new File(this.blueFile);
ImageIO.write(img, "png", file);
}catch(IOException e){
System.out.println(e);
}
}
// conversion table, there may be better out there ie https://www.billmongan.com/Ursinus-CS173-Fall2020/Labs/ASCIIArt
public String asciiChar(double g) {
String str = " ";
if (g >= 240) {
str = " ";
} else if (g >= 210) {
str = ".";
} else if (g >= 190) {
str = "*";
} else if (g >= 170) {
str = "+";
} else if (g >= 120) {
str = "^";
} else if (g >= 110) {
str = "&";
} else if (g >= 80) {
str = "8";
} else if (g >= 60) {
str = "#";
} else {
str = "@";
}
return str;
}
// tester/driver
public static void main(String[] args) throws IOException {
Pics monaLisa = new Pics("MonaLisa", "png");
// monaLisa.printStats("Original");
// monaLisa.resize(33);
// monaLisa.printStats("Scaled");
monaLisa.convertToBlue();
Pics pumpkin = new Pics("pumpkin", "png");
// pumpkin.printStats("Original");
// pumpkin.resize(33);
// pumpkin.printStats("Scaled");
pumpkin.convertToBlue();
}
}
Pics.main(null);
import java.awt.Color;
import java.awt.image.BufferedImage;
import java.awt.Image;
import java.awt.Graphics2D;
import java.io.File;
import java.io.FileWriter;
import java.io.IOException;
import java.io.PrintWriter;
import java.nio.file.Files;
import java.nio.file.Path;
import java.nio.file.Paths;
import javax.imageio.stream.ImageOutputStream;
import javax.imageio.stream.ImageInputStream;
import javax.imageio.metadata.IIOMetadata;
import javax.imageio.IIOImage;
import javax.imageio.ImageIO;
import javax.imageio.ImageWriteParam;
import javax.imageio.ImageWriter;
import javax.imageio.ImageReader;
import javax.imageio.ImageTypeSpecifier;
public class Pics {
private final String inDir = "images/"; // location of images
private final String outDir = "images/tmp/"; // location of created files
private String inFile;
private String resizedFile;
private String asciiFile;
private String redFile;
private String blueFile;
private String greenFile;
private String ext; // extension of file
private long bytes;
private int width;
private int height;
// Constructor obtains attributes of picture
public Pics(String name, String ext) {
this.ext = ext;
this.inFile = this.inDir + name + "." + ext;
this.resizedFile = this.outDir + name + "." + ext;
this.asciiFile = this.outDir + name + ".txt";
this.redFile = this.outDir + name + ".png";
this.blueFile = this.outDir + name + ".png";
this.greenFile = this.outDir + name + ".png";
this.setStats();
}
// An image contains metadata, namely size, width, and height
public void setStats() {
BufferedImage img;
try {
Path path = Paths.get(this.inFile);
this.bytes = Files.size(path);
img = ImageIO.read(new File(this.inFile));
this.width = img.getWidth();
this.height = img.getHeight();
} catch (IOException e) {
}
}
// Console print of data
public void printStats(String msg) {
System.out.println(msg + ": " + this.bytes + " " + this.width + "x" + this.height + " " + this.inFile);
}
// Convert scaled image into buffered image
public static BufferedImage convertToBufferedImage(Image img) {
// Create a buffered image with transparency
BufferedImage bi = new BufferedImage(
img.getWidth(null), img.getHeight(null),
BufferedImage.TYPE_INT_ARGB);
// magic?
Graphics2D graphics2D = bi.createGraphics();
graphics2D.drawImage(img, 0, 0, null);
graphics2D.dispose();
return bi;
}
// Scale or reduce to "scale" percentage provided
public void resize(int scale) {
BufferedImage img = null;
Image resizedImg = null;
int width = (int) (this.width * (scale/100.0) + 0.5);
int height = (int) (this.height * (scale/100.0) + 0.5);
try {
// read an image to BufferedImage for processing
img = ImageIO.read(new File(this.inFile)); // set buffer of image data
// create a new BufferedImage for drawing
resizedImg = img.getScaledInstance(width, height, Image.SCALE_SMOOTH);
} catch (IOException e) {
return;
}
try {
ImageIO.write(convertToBufferedImage(resizedImg), this.ext, new File(resizedFile));
} catch (IOException e) {
return;
}
this.inFile = this.resizedFile; // use scaled file vs original file in Class
this.setStats();
}
// convert every pixel to an ascii character (ratio does not seem correct)
public void convertToGreen() {
BufferedImage img = null;
PrintWriter asciiPrt = null;
FileWriter asciiWrt = null;
try {
File file = new File(this.greenFile);
Files.deleteIfExists(file.toPath());
} catch (IOException e) {
System.out.println("Delete File error: " + e);
}
//read image
// File f = null;
// File g = null;
// try{
// f = new File(this.);
// img = ImageIO.read(f);
// }catch(IOException e){
// System.out.println(e);
// }
// try{
// g = new File("images/tmp/pumpkin.png");
// img = ImageIO.read(g);
// }catch(IOException e){
// System.out.println(e);
// }
try {
asciiPrt = new PrintWriter(asciiWrt = new FileWriter(this.asciiFile, true));
} catch (IOException e) {
System.out.println("ASCII out file create error: " + e);
}
try {
img = ImageIO.read(new File(this.inFile));
} catch (IOException e) {
}
for (int i = 0; i < img.getHeight(); i++) {
for (int j = 0; j < img.getWidth(); j++) {
Color col = new Color(img.getRGB(j, i));
// double pixVal = (((col.getRed() * 0.30) + (col.getBlue() * 0.59) + (col
// .getGreen() * 0.11)));
//int r = (int) (col.getRed() * 0.3);
int g = (int) (col.getGreen() * 0.3);
//int b = (int) (col.getBlue() * 0.7);
Color greenScale = new Color(
0,
g,
0);
img.setRGB(j, i, greenScale.getRGB());
// try {
// asciiPrt.print(asciiChar(greyScale));
// asciiPrt.flush();
// asciiWrt.flush();
// } catch (Exception ex) {
// }
}
try {
asciiPrt.println("");
asciiPrt.flush();
asciiWrt.flush();
} catch (Exception ex) {
}
}
//write image
try{
File file = new File(this.greenFile);
ImageIO.write(img, "png", file);
}catch(IOException e){
System.out.println(e);
}
}
// conversion table, there may be better out there ie https://www.billmongan.com/Ursinus-CS173-Fall2020/Labs/ASCIIArt
public String asciiChar(double g) {
String str = " ";
if (g >= 240) {
str = " ";
} else if (g >= 210) {
str = ".";
} else if (g >= 190) {
str = "*";
} else if (g >= 170) {
str = "+";
} else if (g >= 120) {
str = "^";
} else if (g >= 110) {
str = "&";
} else if (g >= 80) {
str = "8";
} else if (g >= 60) {
str = "#";
} else {
str = "@";
}
return str;
}
// tester/driver
public static void main(String[] args) throws IOException {
Pics monaLisa = new Pics("MonaLisa", "png");
// monaLisa.printStats("Original");
// monaLisa.resize(33);
// monaLisa.printStats("Scaled");
monaLisa.convertToGreen();
Pics pumpkin = new Pics("pumpkin", "png");
// pumpkin.printStats("Original");
// pumpkin.resize(33);
// pumpkin.printStats("Scaled");
pumpkin.convertToGreen();
}
}
Pics.main(null);
